Exide Batteries
We offer a wide range of high-performance batteries suitable for UPS, inverters, solar systems, and industrial applications. The two major types of batteries are:
- VRLA Batteries (Valve Regulated Lead Acid)
- EL Tubular Batteries (Short Tubular & Tall Tubular)
VRLA Batteries Specifications Chart
| Battery Type | Nominal Voltage (V) | Rated Capacity (Ah) at 27°C (V/cell) | Dimensions (mm) | Weight (Kg) (±6%) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Final Voltage per cell | Overall Height (up to lid) | Height (top ±2) | Length (±1) | Width (±1) | ||||||||
| 20 hr (1.75) | 10 hr (1.75) | 3 hr (1.7) | 1.5 hr (1.7) | 1 hr (1.6) | 30 mins (1.6) | |||||||
| EP 7-12 | 12 | 7 | 6.5 | 5.2 | 5.0 | 4.2 | 3.5 | 100 | 94 | 151 | 65 | 2.22 |
| EP 9-12 / EP 1234 W | 12 | 9 | 8.1 | 6.8 | 6.4 | 5.4 | 4.5 | 100 | 94 | 151 | 65 | 2.39 |
| EP 12-12 | 12 | 12 | 11.2 | 9.0 | 8.6 | 7.2 | 6.0 | 100 | 94 | 151 | 98 | 3.20 |
| EP 17-12 | 12 | 17 | 16.0 | 12.9 | 12.2 | 10.2 | 8.5 | 167 | 167 | 181 | 76 | 5.00 |

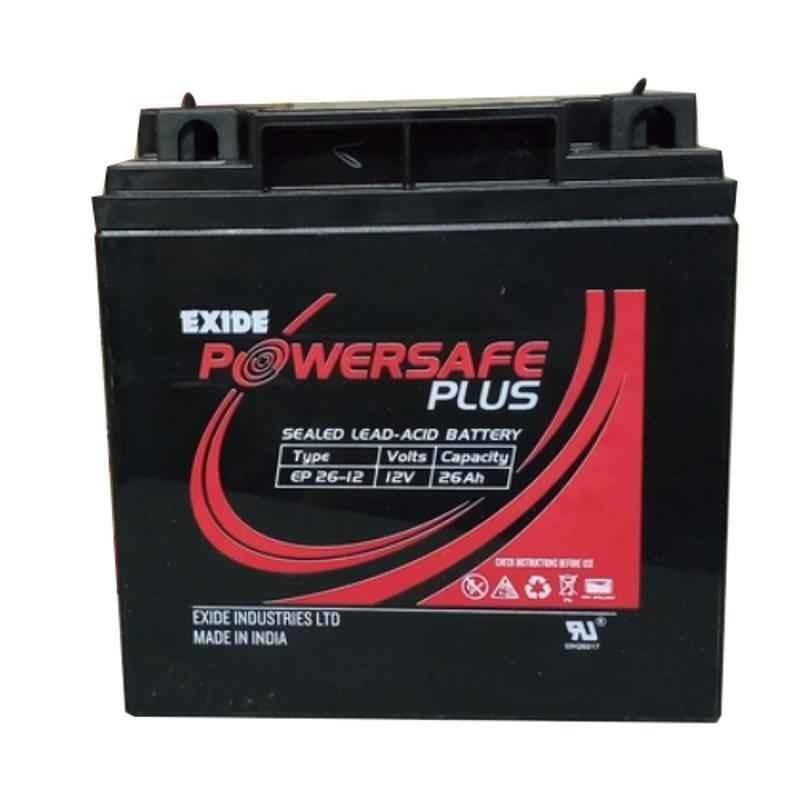

| EP 26-12 W | 12 | 26 | 24.0 | 19.5 | 18.7 | 15.6 | 13.0 | 175 | 175 | 166 | 125 | 8.80 |
| EP 42-12 | 12 | 42 | 38.5 | 31.5 | 30.2 | 25.2 | 21.0 | 170 | 170 | 197 | 165 | 12.60 |

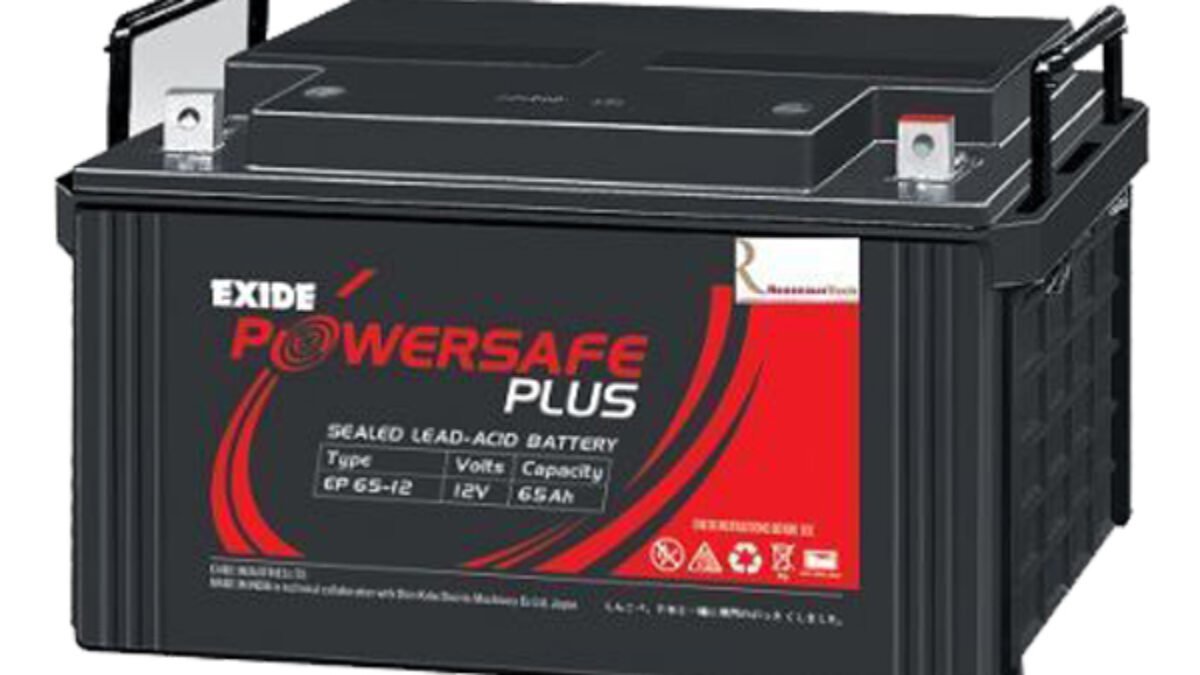

| EP 65-12 | 12 | 65 | 60.0 | 48.6 | 46.8 | 39.0 | 32.5 | 174 | 174 | 350 | 166 | 20.30 |
| EP 75-12 | 12 | 75 | 69.0 | 56.2 | 54.0 | 45.0 | 37.5 | 174 | 174 | 350 | 166 | 21.05 |
| EP 100-12 | 12 | 100 | 91.0 | 75.0 | 72.0 | 60.0 | 50.0 | 235 | 235 | 407 | 173 | 32.80 |
| EP 120-12 | 12 | 120 | 109.0 | 90.0 | 86.4 | 72.0 | 60.0 | 235 | 235 | 407 | 173 | 35.65 |
| EP 150-12 | 12 | 150 | 136.5 | 112.5 | 108.0 | 90.0 | 75.0 | 240 | 240 | 557 | 172 | 46.65 |
| EP 200-12 | 12 | 200 | 182.0 | 150.0 | 144.0 | 120.0 | 100.0 | 240 | 240 | 533 | 250 | 62.95 |
Exide EL Tubular Monobloc Batteries (Standard Range)
| Type | Capacity in Ah at 27°C when discharged for | Nominal Monobloc Unit Voltage (V) | Final Voltage per cell (V) (Conforms to BIS 13369) | Charge Current (A) | Minimum Ah input during initial charge | Approx. Battery Weight (Kg) ±5% | Approx. acid qty at 1.220 Sp. Gr. (Litres/Cell) | Overall Dimensions (mm) | Constant Potential Limiting Current (A) | Trickle Charge Current (mA) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 Hr. | 5 Hr. | Starting | Finishing | Without acid | Filled with acid | L ±3 | W ±3 | H ±3 | Min | Max | ||||||
| 6EL26 | 26 | 12 | 12 | 1.75 | 3.50 | 1.75 | 126 | 11.11 | 16.79 | 0.76 | 260 | 173 | 240 | 7.00 | 28 | 112 |
| 6EL40 | 40 | 38 | 12 | 1.75 | 5.00 | 2.50 | 160 | 12.59 | 17.90 | 0.73 | 260 | 173 | 240 | 10.00 | 40 | 160 |
| 6EL50 | 50 | 47 | 12 | 1.75 | 6.00 | 3.00 | 234 | 14.30 | 19.10 | 0.65 | 260 | 173 | 240 | 12.50 | 50 | 200 |
| 6EL60 | 60 | 57 | 12 | 1.75 | 7.00 | 3.50 | 276 | 19.50 | 27.70 | 1.25 | 410 | 176 | 249 | 15.00 | 60 | 240 |
| 6EL75 | 75 | 70 | 12 | 1.75 | 9.00 | 4.50 | 345 | 22.00 | 31.60 | 1.30 | 410 | 176 | 249 | 18.75 | 75 | 300 |
| 6EL100 | 100 | 95 | 12 | 1.75 | 12.00 | 6.00 | 474 | 30.50 | 43.35 | 1.95 | 506 | 220 | 257 | 25.00 | 100 | 400 |
Exide EL Tall Tubular Batteries (Higher Range)
| Type | Capacity in Ah at 27°C when discharged for | Nominal Monobloc Unit Voltage (V) | Final Voltage per cell (V) (Conforms to BIS 13369) | Charge Current (A) | Minimum Ah input during initial charge | Approx. Battery Weight (Kg) ±5% | Approx. acid qty at 1.220 Sp. Gr. (Litres/Cell) | Overall Dimensions (mm) | Constant Potential Limiting Current (A) | Trickle Charge Current (mA) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 Hr. | 5 Hr. | Starting | Finishing | Without acid | Filled with acid | L ±3 | W ±3 | H ±3 | Min | Max | ||||||
| 6EL120 | 120 | 114 | 12 | 1.80 | 15.00 | 7.50 | 540 | 34.00 | 63.00 | 3.97 | 500 | 187 | 421 | 30.00 | 120 | 480 |
| 6EL130 | 130 | 123 | 12 | 1.80 | 16.00 | 8.00 | 585 | 36.80 | 60.20 | 3.25 | 500 | 187 | 421 | 32.50 | 130 | 520 |
| 6EL160 | 160 | 152 | 12 | 1.80 | 20.00 | 10.00 | 720 | 45.00 | 72.00 | 3.00 | 509 | 187 | 421 | 40.00 | 160 | 640 |
| 6EL200 | 200 | 190 | 12 | 1.80 | 24.00 | 12.00 | 900 | 55.00 | 74.00 | 2.60 | 500 | 187 | 421 | 50.00 | 200 | 800 |
